History of W9XBY

Kansas City's Experimental High-Fidelity Station

Kansas City was home to one of just four experimental high-fidelity AM stations in the United States. But the experiment went sour just a few years later and, by the end of 1942, the station had lost its license.

On December 19, 1933, the Federal Radio Commission authorized three new broadcast-band channels above the previous upper bound of 1500 kHz. The three channels, at 1530, 1550, and 1570 kHz, were 20 KHz wide instead of the standard 10 kHz, thereby making high-fidelity broadcasting possible without interference from adjacent stations.

The band had been made available the previous summer as the result of action at the North American Radio Conference in Mexico City. In the United States, public-service agencies were using that part of the band.

There were two Kansas City applicants for 1530 kHz. The Unity School of Christianity, owner of WOQ, was seeking the channel as a means of staying on the air if it lost its fight to stay on 1300 kHz. The commission had attempted to deny WOQ a license renewal in 1931.

The other Kansas City applicant was First National Television, Inc., operator of a radio engineering school and holder of an experimental television license, W9XAL. First National was partially owned by Arthur B. Church, the principal owner of KMBC.

On April 4 and 5, 1934, the Federal Radio Commission held hearings on all six applications:

  • Unity School of Christianity, Kansas City, 1530 kHz, 1000 watts
  • American-Republican, Inc., Waterbury, Conn., 1530 kHz, 1000 watts
  • First National Television, Inc., Kansas City, 1530 kHz, 1000 watts
  • John V. L. Hogan, Long Island City, New York, 1550 kHz, 1000 watts
  • Pioneer Mercantile Co., Bakersfield, California, 1550 kHz, 1000 watts
  • Fred W. Christian, Jr., and Raleigh W. Whiston, Los Angeles, 1570 kHz, 1000 watts

Two weeks later, the Commission approved all except the Unity and Los Angeles applications. According to Broadcasting, "The fact that more applicants for the newly opened wave lengths did not appear has produced considerable surprise, particularly in the ranks of the Radio Commission."

Additional applications were subsequently filed by two applicants seeking to build a station in the Boston area: the General Television Corp., and D.E. Replogle, a consulting engineer from Ridgewood, New Jersey. Neither application made it on the air.

The Radio Commission assigned call letters to the four approved stations on May 25, 1934:

  • W1XBS, American-Republican, Waterbury, Connecticut
  • W9XBY, First National Television, Inc., Kansas City
  • W6XAI, Pioneer Mercantile Co., Bakersfield, California
  • W2XR, John V. L. Hogan, Long Island City, New York

On December 31, 1934, W9XBY began operations. One source for this date is the Variety Radio Directory for 1937-38, which lists a start date of December 31, 1934 for KXBY at 1530 kHz.

A pamphlet published by W9XBY in 1935 is titled Interesting facts about W9XBY. Among those facts are a reference to the station's studios on the 29th floor of the Kansas City Power and Light Building and a description of the station's "latest type 'Vertical Radiator' antenna" operating with a 1,000-watt transmitter at a location in south Kansas City, Missouri. Based on the description, I estimate this tower was located somewhere along 85th Street, the southernmost Kansas City limits at the time.

A scrapbook of Kansas City Journal-Post articles now possessed by former KFRU principal owner Al Germond makes frequent reference to the "unusual" programming heard on W9XBY and KXBY. According to the 1935 W9XBY pamphlet, it had "full commercial privileges and accepts sponsored programs."

The president of W9XBY, Sid Noel, told the Kansas City Journal-Post that the station received more than 2,200 letters from listeners "in all parts of the United States and Canada" beginning with its New Year's Eve inaugural broadcast.

An undated Kansas City Journal-Post article from 1935 described W9XBY's programming as part of a Variety survey of local radio "showmanship":

Arthur Church's KMBC goes after community tie-ups and is showmanship-minded as is W9XBY, the experimental lisensee [sic] in which Church is interested. Latter has done some unusual programs due to its tentative character. Among these are burlesques of other Kansas City station programs, a Swappers Corner, negro fraternity tie-ups, local baseball broadcasts.

One of those programs reached some important ears at far distances. A record producer and talent scout, the now-famous John Hammond (later a CBS Records vice-president), heard a live broadcast from Kansas City's Reno Club in 1936 on W9XBY while sitting in his car in Chicago. Hammond was listening to the Count Basie Orchestra. Hammond wrote a letter to Basie, Basie responded, and helped launch Basie's career in New York. (Source: Calvin Wilson's article in the Kansas City Star, Stomping to Fame, page J-1, July 14, 1996.)

On the technical side, Everett L. Dillard joined W9XBY shortly after it started. He first was the station's continuity director, and later was the chief engineer. According to an article in the Kansas City Journal-Post, "Dillard brings to the station a background of technical and program experience and is assisting in lining up remote controls [sic] which are to be featured by W9XBY." Dillard was also the founder of WLBF (now KCKN) and, by 1941, had put Kansas City's first FM station on the air, KOZY.

Dillard left W9XBY (which by then probably was called KXBY) by 1937. The October 1938 Radio Index (RaDeX) and the September 15, 1940 Broadcasting list of NARBA reallocations listed the station as KITE(AM), with 1 kW fulltime. The station changed to standard broadcast operation with its move to its NARBA frequency of 1590 kHz on March 29, 1941.

At some point during this time, KITE's owner, First National Television Inc., became involved in protracted litigation. One of First National's founders was KMBC president Arthur B. Church. For whatever reason, according to Broadcasting, "Later Mr. Church withdrew from the company and entered into litigation with the corporation structure, which became highly involved and confused." (November 9, 1942)

Other original owners included former Federal Radio Commissioner Sam Packard and his brother-in-law, Kansas City attorney Richard K. Phelps. According to Broadcasting, "The station has undergone many management and personnel shifts, the latest having been ordered last July when it was placed under the direction of Mr. Phelps, who appointed Simms Guckenheimer, secretary of Transradio Press, New York, as its manager." (ibid.)

The End of W9XBY

An application to sell KITE to the owners of KLO in Ogden, Utah was made to the Federal Communications Commission in November, 1941, but the deal fell through. On July 19, 1942, KITE changed call letters to KXKX and moved its studios to the Continental Hotel in downtown Kansas City.

A Broadcasting article reported, "a program policy has been set up which includes continuous variety music with several periods daily of classical music and news every hour on the half hour". (July 27, 1942) KXKX also continued KITE's practice of carrying Mutual network programs after Kansas City's regular Mutual affiliate, daytimer WHB, signed off at sunset.

The Commission had decided to hold a hearing on KITE's renewal, beginning July 20, 1942. The hearing was continued to September 3, then September 21, then October 5.

Evidently no one from the station showed up at the October 5 hearing. Thus, reported Broadcasting, "According to the FCC, First National Television Inc. ... was without funds to continue operations. The denial followed failure of the station to put in an appearance at a hearing scheduled for last Oct. 5." (November 9, 1942)

Consequently, the FCC denied the license renewal "as in default" on November 6, 1942. The station had gone off the air one month earlier.

A Kansas City Star item on October 8 had this brief lead:

Radio station KXKX, operated by the First National Television, Inc., suspended operation this morning, according to Simms Gaynor [sic], manager.


First National Television - "Chuck Wagon Opera" Poster 25k 65k

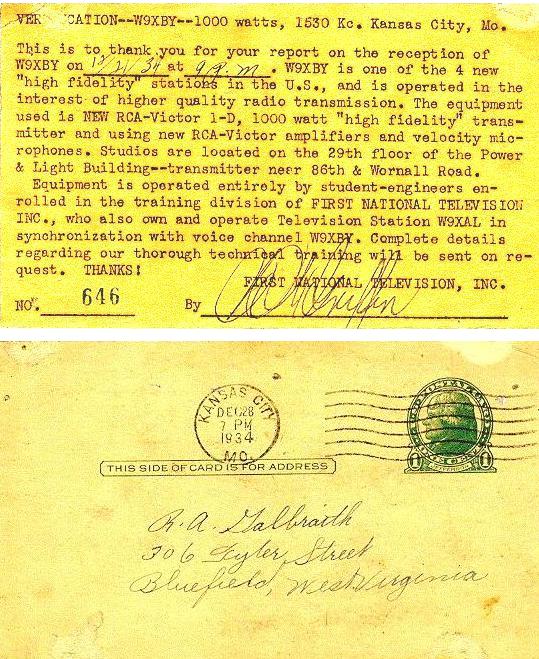

SWL QSL #646 from W9XBY dated 12-21-1934
QSL images provided by Tony G4UZN, tnx Tony es 73 de Bob, NØUF, QCWA Webmaster
Looks like they started a little before the official date of 12-31-1934

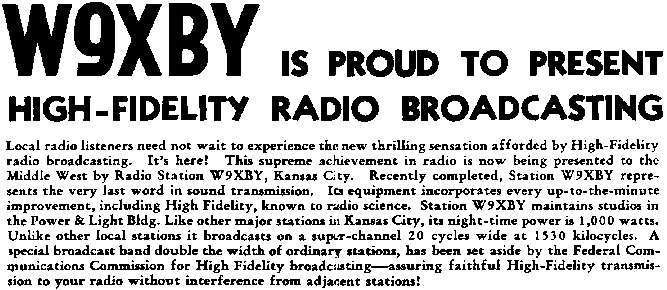

"Interesting Facts About W9XBY"

Just as any other promoter of new technology, the founder of W9XBY exerted considerable effort to explain high-fidelity radio to potential listeners in Kansas City. This was one of several pamphlets published by the station in 1935, seeking to show how the station was superior to standard AM broadcasting.

This copy of the pamphlet is courtesy of Al Germond.

W9XBY pamphlet image

W9XBY pamphlet image
